V2 Noise Level Double Row Spherical Roller Bearing 22307 22308 22309 for Industrial

V2 Noise Level Double Row Spherical Roller Bearing 22307 22308 22309 for Industrial

Product Details:

Place of Origin: China

Payment & Shipping Terms:

Minimum Order Quantity: 500 pieces
Delivery Time: Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Payment Terms: LC, T/T, D/P, PayPal, Western Union
Get Best Price Contact Now

Detail Information
Model NO.: 22307-22360 Material: Chrome Steel
Spherical: Aligning Bearings Load Direction: Radial Bearing
Separated: Unseparated Precision Rating: P0 P6 P5 P4 P2
Seals Type: Open Noise Level: V1, V2, V3
Feature: Low Noise, High Speed, Long Life Tolerance Grade: C1 C2 C3
Hardness: 58-63 HRC Transport Package: Standard Box Packing
Specification: 0.75-284kg Trademark: BUGAO/NBKT
Origin: Ningbo HS Code: 8482102000
Supply Ability: 100000 Customization: Available
Rolling Body: Spherical Roller Bearing The Number Of Rows: Double

Product Description

1.Product Description:
Bearing No. Dimensions [mm] Weight [kg] Basic load ratings [kN] Limiting speed [rpm]
d D B dyn.C stat.C0 grease oil
22307 CW33 35 80 31 0,75 105 107 5100 6700
22307 KCW33 35 80 31 0,733 105 107 5100 6700
22308 CW33 40 90 33 1 115 122 4500 5600
22308 KCW33 40 90 33 0,984 115 122 4500 5600
22309 CW33 45 100 36 1,35 138 160 3800 4800
22309 KCW33 45 100 36 1,36 138 160 3800 4800
22310 CW33 50 110 40 1,85 176 200 3400 4300
22310 KCW33 50 110 40 1,7 176 200 3400 4300
22311 CW33 55 120 43 2,35 199 232 3200 4000
22311 KCW33 55 120 43 2,02 199 232 3200 4000
22312 CW33 60 130 46 2,9 235 280 3000 3800
22312 KCW33 60 130 46 2,8 235 280 3000 3800
22313 CW33 65 140 48 3,55 253 300 2600 3400
22313 KCW33 65 140 48 3,57 253 300 2600 3400
22314 CW33 70 150 51 4,3 311 380 2400 3200
22314 KCW33 70 150 51 4,25 311 380 2400 3200
22315 CW33 75 160 55 5,25 345 430 2200 3000
22315 KCW33 75 160 55 5,01 345 430 2200 3000
22316 CW33 80 170 58 6,2 374 455 2000 2800
22316 KCW33 80 170 58 5,95 374 455 2000 2800
22317 CW33 85 180 50 7,25 420 520 1900 2600
22317 KCW33 85 180 60 6,84 420 520 1900 2600
22318 CW33 90 190 54 8,6 477 610 1800 2400
22318 KCW33 90 190 64 8,08 477 610 1800 2400
22319 CW33 95 200 67 10 518 670 1800 2400
22319 KCW33 95 200 67 9,21 518 670 1800 2400
22320 CW33 100 215 73 13 610 800 1700 2200
22320 KCW33 100 215 73 11,7 610 800 1700 2200
22322 CW33 110 240 80 17,5 725 965 1600 2000
22322 KCW33 110 240 80 17,4 725 965 1600 2000
22324 CW33 120 260 88 22 845 1120 1400 1800
22324 KCW33 120 260 86 21 845 1120 1400 1800
22326 CW33 130 280 93 28,5 978 1320 1300 1700
22326 KCW33 130 280 93 26,7 978 1320 1300 1700
22328 CW33 140 300 102 34,5 1130 1560 1100 1500
22328 KCW33 140 300 102 34 1130 1560 1100 1500
22330 CW33 150 320 108 41,5 1270 1760 1000 1400
22330 KCW33 150 320 108 40,6 1270 1760 1000 1400
22332 CW33 160 340 114 50 1380 1960 950 1300
22332 KCW33 160 340 114 50,5 1380 1960 950 1300
22334 CW33 170 360 120 58,5 1540 2160 950 1300
22334 KCW33 170 360 120 58,2 1540 2160 950 1300
22336 CW33 180 380 126 69 1730 2450 900 1200
22336 KCW33 180 380 126 68,5 1730 2450 900 1200
22338 CW33 190 400 132 80 1870 2650 850 1100
22338 KCW33 190 400 132 79,4 1870 2650 850 1100
22340 CW33 200 420 138 92,5 2020 2900 850 1100
22340 KCW33 200 420 138 90,4 2020 2900 850 1100
22344 CW33 220 480 45 120 2350 3450 750 950
22344 KCW33 220 460 145 117 2350 3450 750 950
22348 CW33 240 500 155 155 2670 4000 670 850
22348 KCW33 240 500 155 149 2670 4000 670 850
22352 CW33 260 540 165 190 3050 4550 630 800
22352 KCW33 260 540 165 181 3050 4550 630 800
22356 CW33 280 580 175 235 3450 5200 600 750
22356 KCW33 280 580 175 230 3450 5200 600 750
22360 CW33 300 620 185 289 3910 5430 470 630
22360 KCW33 300 620 185 284 3910 5430 470 530
Usually carton packaging, or PVC bag with a label. Specifically according to the customer to your needs, you can use any packaging situation.


Description:
1) The spherical roller bearing has two rows of rollers, a common sphered raceway in the outer ring, and two inner ring raceways inclined at an angle to the bearing axis.

2) The bearings are inherently self aligning and robust, which makes the bearings insensitive to misalignment of the shaft relative to the housing and to shaft deflection or bending.

3) The two rows of rollers make the bearings able to carry high axial loads acting in both directions.

4) There are many sizes and designs for this type bearings, depending on bearing the arrangement of the floating guide and the design of the inner ring and/or cages.

Spherical roller bearing'items as follow:

23022 series

23022 23024 23026 23028 23030 23032 23034 23036

23038 23040 23044 23048 23052 23056 23060 23064

23068 23072 23076 23080 23084 23088 23092 23096

24024  series

24024 24026 24028 24030 24032 24034 24036 24038

24040 24044 24048 24052 24056 24060 24064 24068 24072

23218  series

23218 23220 23222 23224 23226 23228 23230 23232

23234 23236 23238 23240 23244 23248 23252 23256

23260 23264 23268 23272 23276 23280 23284 23288

23292 23296

22208  series

22205 22206 22207 22208 22209 22210 22211 22212 22213 22214

22215 22216 22217 22218 22219 22220 22222 22224 22226 22228

22230 22232 22234 22236 22238 22240 22244 22248 22252 22256

22260 22264 22268 22272

22308 series

22307 22308 22309 22310 22311 22312 22313

22314 22315 22316 22317 22318 22319 22320

22322 22324 22326 22328 22330 22332 22334

22336 22338 22340 22344 22348 22352 22356 22360

23121  series

23121 23122 23124 23126 23128 23130 23132

23134 23136 23138 23140 23144 23148 23152

23156 23160 23164 23168 23172 23176  23180

23184 23188 23192 23196  23936 23940 23948

23960 23972 23976 23996

24122  series

24122 24124 24126 24128 24130

24132 24134 24136 24138  24140 24144 24148 24152 24156 24160 24172

2.Product Picture:

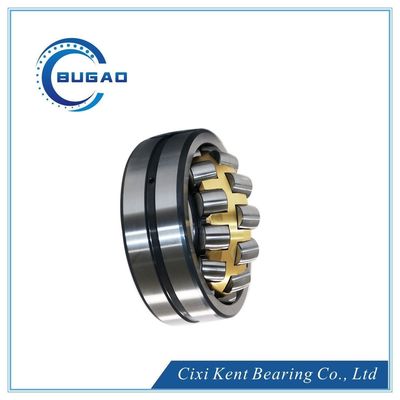

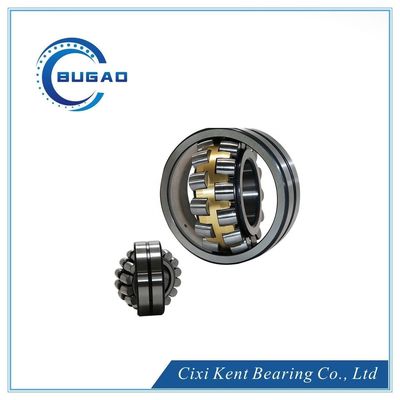

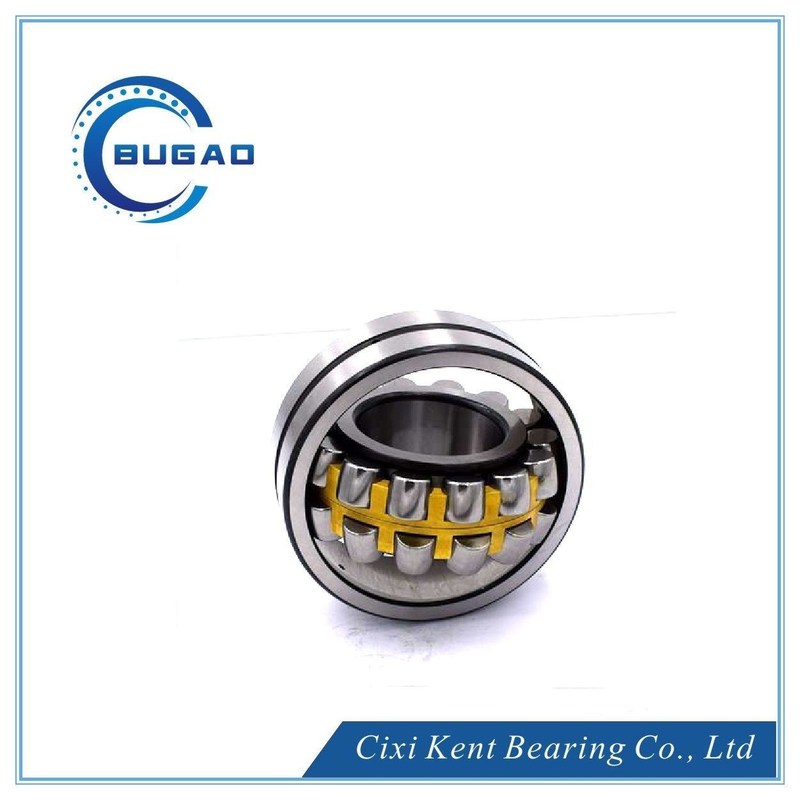

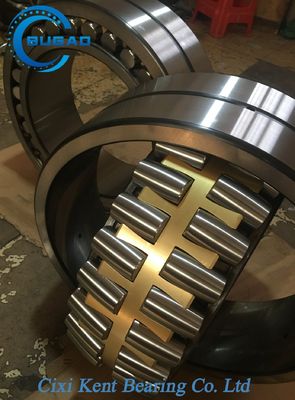

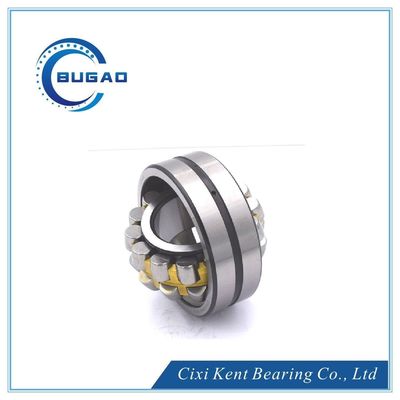

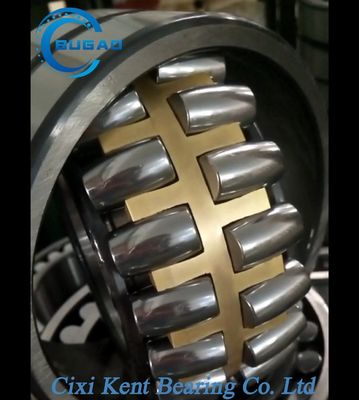

Double Row Spherical Structure Roller Type (22307 22308 22309) Bearing
Double Row Spherical Structure Roller Type (22307 22308 22309) Bearing
Double Row Spherical Structure Roller Type (22307 22308 22309) Bearing
Double Row Spherical Structure Roller Type (22307 22308 22309) Bearing

3.Production Process:


Double Row Spherical Structure Roller Type (22307 22308 22309) Bearing



4.Application
Papermaking machinery, speed reducer, railway vehicle axle, rolling mill gear box , rolling mill roller , crusher, vibrating screen, printing machinery, woodworking machinery, various industrial speed reducers, vertical belt seated self-aligning bearings.

5.Why choose us?
▄ Cixi Kent bearing Co.,Ltd established in 2003, has been focused on high precision and low noise deep groove ball bearing research and manufacturing. Engaged in foreign trade for 15 years, we provide products for many industrial fields. We attach important to global production, Not only won wideapresd praise in the domestic market, but also gain the recognition of foreign market, such as European,Southeast Asian and Africa market.
▄ The company has more than 20 assembly lines, and through ISO9001:2000 quality management system certification, has a professional technical and service team, technical personnel proportion of more than 30%. Over the years, we have been adhering to the use of high-end raw material production, from the first to every step, with excellent product development capabilities and strict quality control, we continue to expand the product line and application range.
▄ To learn from the advanced level at home and abroad, to create their own high-quality bearings, is the eternal pursuit of Kent bearing company. Uphold the "True quality is more durable, let the bearing move more quieter"
business philosophy, we have received many customers good praise.
▄ Good Warranty we take customer satisfaction and product quality as the first priority for us, we supply reliable warranties and good after-sales services.

6.Development.
Double Row Spherical Structure Roller Type (22307 22308 22309) Bearing
                        China international bearing exhibiton in Shanghai, 2018

Double Row Spherical Structure Roller Type (22307 22308 22309) Bearing

                      Participate in hannover exhibition in Germany ,2019
